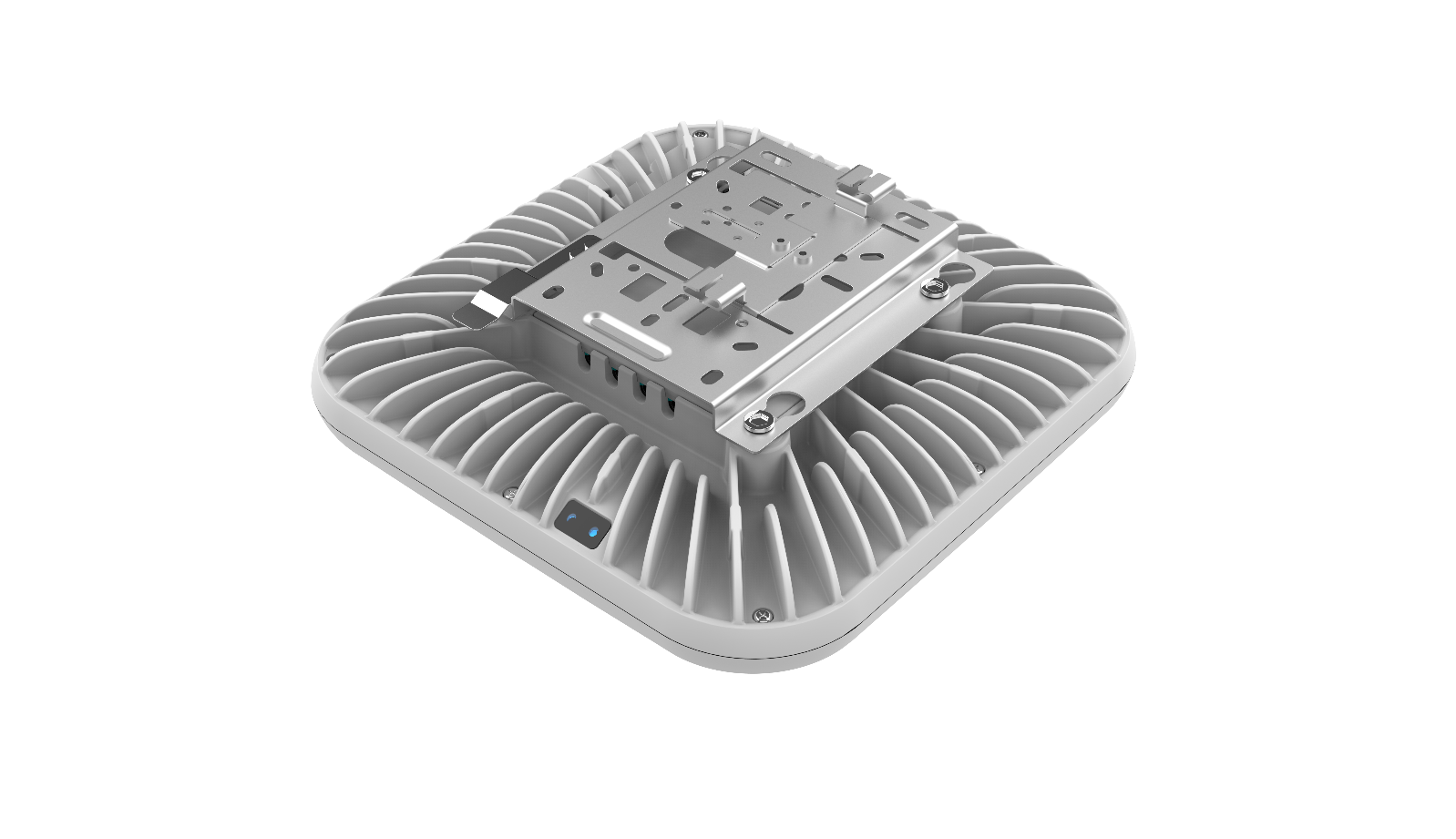

WIFI 7 AirTurbo710be

BE21000 Wi-Fi7 Access Point AirTurbo710be

AirTurbo 710be new generation enhanced Wi-Fi7 Wireless Access Point, Wi-Fi 7 introduces technologies such as 320 MHz bandwidth, 4096-quadrature amplitude modulation (QAM), multiresource unit (RU), multi-link operation (MLO), enhanced multi-user multiple-input multiple-output (MU-MIMO), and multi-access point coordination. Drawing on these cutting-edge technologies.

Overview
Specifications

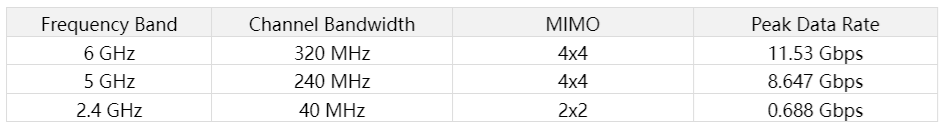

l Triple-radio: 2.4 GHz (4x4 MIMO) + 5 GHz (4x4 MIMO) + 6 GHz (4x4 MIMO), achieving rates of up to 0.688 Gbps, 8.647 Gbps, and 11.53 Gbps respectively,

and 20.865 Gbps for the device;

l AirTurbo710be features a flexible RF design, allowing the 6 GHz band to dynamically switch to the 5G high-band, operating on both 5G low-band (5GL)

and 5G high-band (5GH) frequencies. This ensures seamless compatibility in regions where the 6 GHz spectrum has not yet been authorized for use;

l MIMO: 10 space flow, 2.4GHz: 2×2:2，5GHz: 4×4:4，6GHz/5GHz: 4×4:4; (dynamically switch*)

The function and features marked with * can be implemented through software upgrade. The following describes are the same.

l The AirTurbo710 features two 2.5GE Ethernet ports and one 10G SFP+ optical port, with both Ethernet ports supporting PoE power input. AirTurbo

710 implements an IEEE802.3bt Power over Ethernet (PoE++) with dual redundant inputs and smooth transition between these inputs and an auxiliary

input. It supports up to three power supplies: (two PoE Power Source Equipment (PSE) supplies and one AC/DC wall adapter auxiliary supply).

In addition, a delayed supervisor circuit and additional circuitry enable the AP to achieve a smooth transition between PoE to auxiliary and PoE

to PoE power supply connections (in the event the main power supply is removed or fails) without an interruption in output voltage or disconnecting

from the PSE, thereby minimizing the risk of system downtime and data loss.

l To enhance the safety and stability of IEEE 802.3bt PoE power delivery, the AirTurbo710 employs a forward synchronous rectification power topology.

This design improves output voltage transient response and load regulation, resulting in a more efficient, stable, and secure power supply system.

l Support AC Centralized control, Saved network maintenance costs.

Item		Description
Technical specifications	Dimensions (H x W x D)	220x220x50 mm
	Weight	1.4 kg
	Interface type	2 x 10/100/1000M/2.5GE auto-sensing (RJ45) 1 x 1G/10G SFP+ optical port 1 x MESH button 1 x Reset button Two 2.5GE ports support PoE input. 10G SFP+ port supports the 10G SFP+ module, 1G SFP module
	LED indicator	power-on, system
Power specifications	Power input	Input voltage range:43.2V~57.6V Redundant input: 2 PoE and 1 48V AC/DC wall adapter auxiliary supply Power over Ethernet via Cat5e/Cat6 cables: Compliant with IEEE802.3bt standards. In different power supply modes, please consult the equipment supplier for product working information. When 3 sets of power supply are inserted simultaneously, AP smooth transition to adapter auxiliary supply, then powered by Passive PoE, PSE as the last choice, When a higher priority power supply is connected, the lower priority power supply is turned off. Note: If the CAT5e cables have similar lengths/resistance and both PD circuits have similar losses, the PD circuits may share the input current. This is not typical.
	Maximum power consumption	40.5W The actual maximum power consumption depends on local laws and regulations.
	Maximum power consumption
Environmental specifications	Operating temperature	-40℃～+65℃
	Storage humidity	-40℃～+85℃
	Operating humidity	5% ~ 95% (non-condensing)
	Altitude	–60m～5000m
	Atmospheric pressure	53kPa～106kPa
Radio specifications	Antenna type	Built-in semi-omnidirectional antenna
	Antenna gain	2.4GHz: 6.5dBi MIMO 5GHz: 7dBi MIMO 6GHz: 7dBi MIMO Peak gain of antenna
	Maximum number of SSID for each radio	≤16* Based on actual software configuration.
	Maximum number of users	≤640（2.4GHz@128、5.8GHz@256、6GHz@256） The actual number of users varies according to the environment.
	RF Power	2.4GHz（2x2）: 27dBm（MIMO） 5GHz（4x4）: 29dBm（MIMO） 6GHz（4x4）: 28dBm（MIMO） EIRP=RF power + Antenna gain, It varies according to regulations in different countries and regions.
	Power increment	1dBm
	Frequency bands	2.400～2.4835GHz ISM 5.150～5.250GHz U-NII-1 5.250～5.350GHz U-NII-2A 5.470～5.725GHz U-NII-2C 5.725～5.850GHz U-NII-3/ISM 5.925～6.425GHz U-NII-5 6.425～6.525GHz U-NII-6 6.525～6.875GHz U-NII-7 6.875～7.125GHz U-NII-8 The available band and channel depend on the configured regulatory domain (country)
	Receiver sensitivity	2.4GHz 802.11ax(HE20): -98dBm/MCS0NSS1; -71dBm/MCS11NSS1; 2.4GHz 802.11ax(HE40): -94dBm/MCS0NSS1; - 69dBm/MCS11NSS1; 5GHz 802.11ax (HE20): -96dBm/MCS0NSS1; - 67dBm/MCS11NSS1; 5GHz 802.11ax (HE40): -94dBm/MCS0NSS1; -65dBm/MCS11NSS1; 5GHz 802.11ax (HE80): -91dBm/MCS0NSS1; - 62dBm/MCS11NSS1; 5GHz 802.11ax (HE160): -89dBm/MCS0NSS1; - 59dBm/MCS11NSS1; 5GHz 802.11be (EHT20):-94dBm/MCS0; -61dBm/MCS13; 5GHz 802.11be (EHT40):-93dBm/MCS0; -59dBm/MCS13; 5GHz 802.11be (EHT80): -91dBm/MCS0NSS1;- 58dBm/MCS13NSS1; 5GHz 802.11be (EHT160): -88dBm/MCS0NSS1; - 56dBm/MCS13NSS1; 6GHz 802.11ax (HE20): -96dBm/MCS0NSS1; - 68dBm/MCS11NSS1; 6GHz 802.11ax (HE40): -95dBm/MCS0NSS1; - 67dBm/MCS11NSS1; 6GHz 802.11ax (HE80): -92dBm/MCS0NSS1; - 64dBm/MCS11NSS1; 6GHz 802.11ax (HE160): -89dBm/MCS0NSS1; - 61dBm/MCS11NSS1; 6GHz 802.11be (EHT20): -94dBm/MCS0; -62dBm/MCS13; 6GHz 802.11be (EHT40): -92dBm/MCS0; -61dBm/MCS13; 6GHz 802.11be (EHT80): -89dBm/MCS0; -58dBm/MCS13; 6GHz 802.11be (EHT160): -87dBm/MCS0; -55dBm/MCS13; 6GHz 802.11be (EHT320): -84dBm/MCS0; -53dBm/MCS13;
